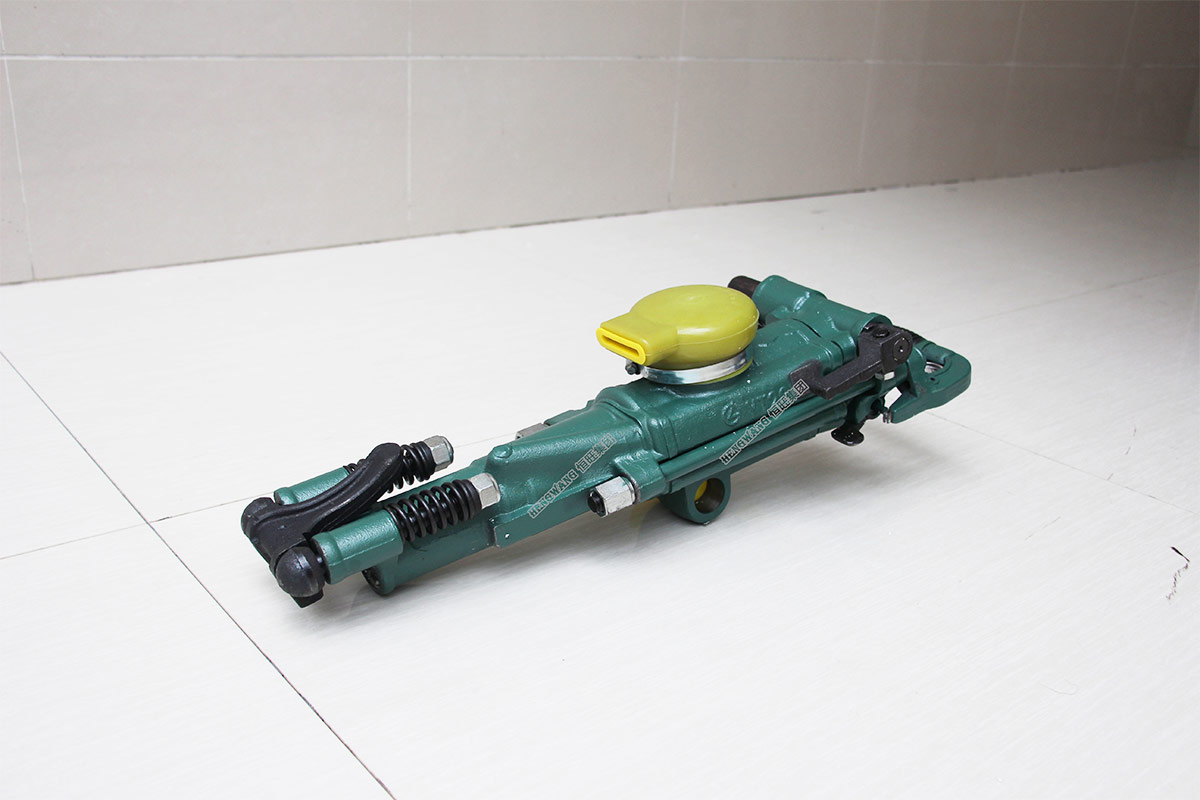

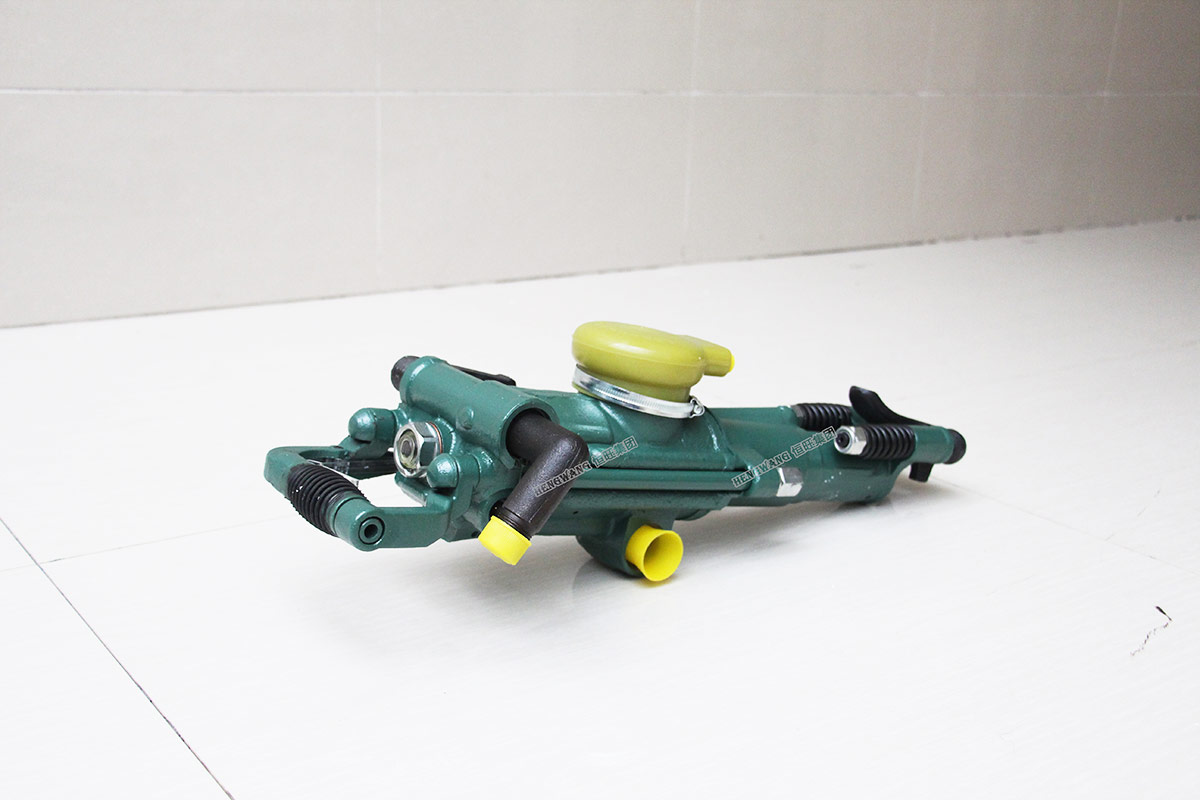

YT24 Rock Drill
Training on Arrival
One-year warranty
Factory Direct
Basic Specifications:
Drilling Depth: 5M
Drill Rod: B22
Weight: 24Kg
Hengwang Group aims to provide you with complete engineering equipment solutions to reduce your costs and increase your profits.
BackYT24 rock drill, pneumatic jack hammer can be used to digging dry or wet by horizontal holes, vertical holes or angling holes on medium-hard rock or hard rock. Widely used in mines, railway, irrigation and quarry to drill holes and for the second digging holes.
| Type | YT24 | |
| Weight (kg) | 24 | |
| Air consumption (L/s) | ≤67 | |
| Bore Dia. (mm) | Φ34-42 | |
| Drilling depth (m) | 5 | |
| Shank(mm) | 22×108 | |
| Air pressure (MPa) | 0.63 | |
| Suitable air-legs | FT140BD | |
| Height (kg) | 15.6 | 13.9 |
| Length (mm) | 1687 | 1400 |
| Feed length (mm) | 1250 | 965 |
All products are guaranteed for 12 months!
