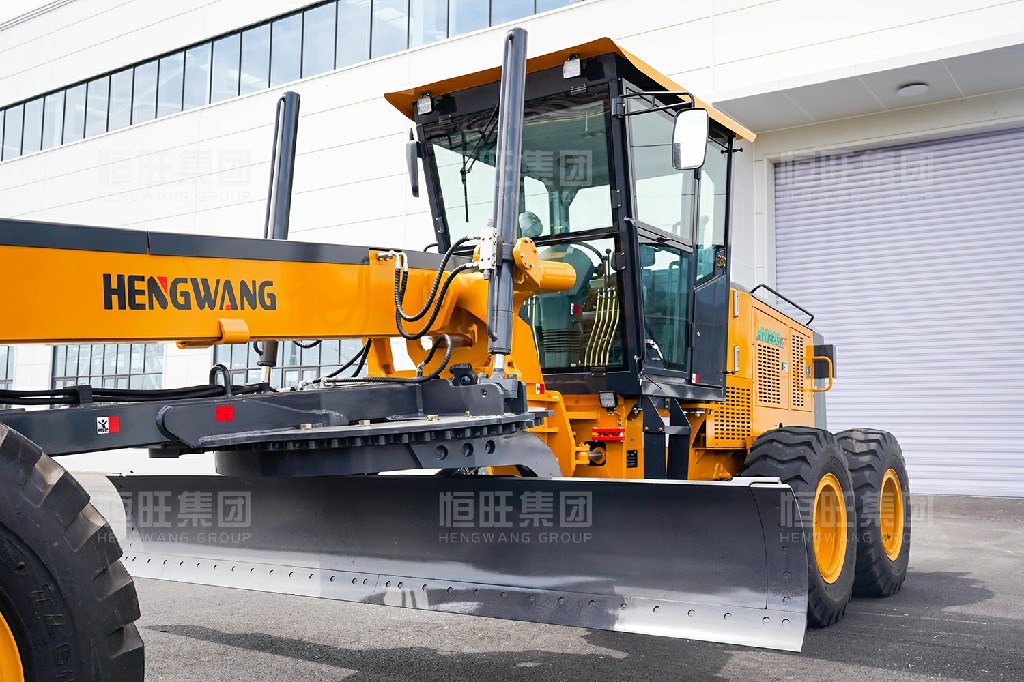

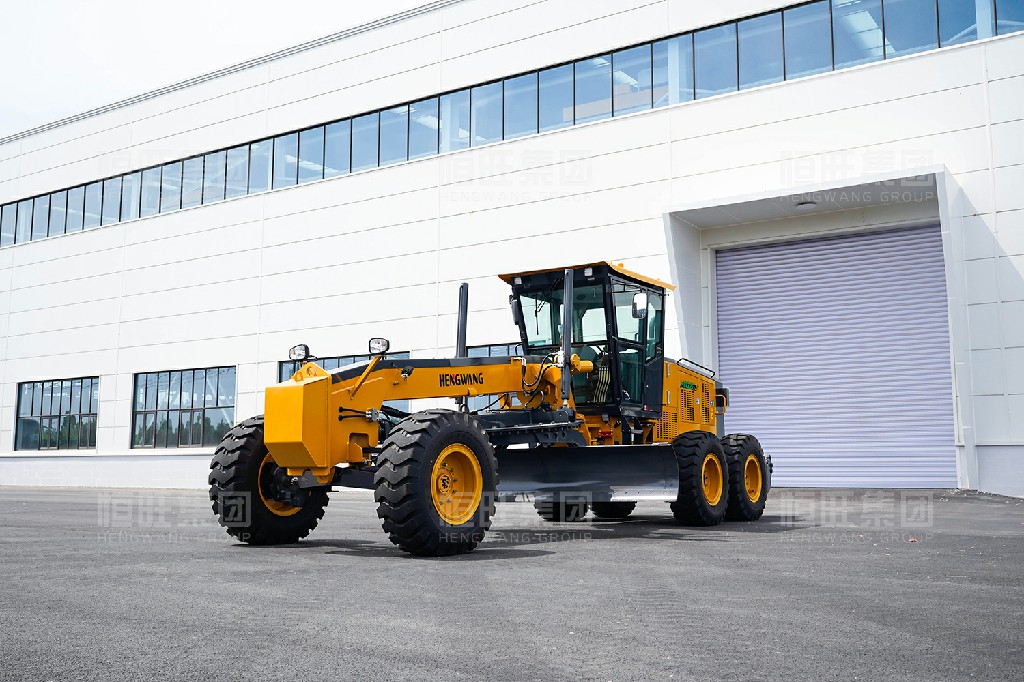

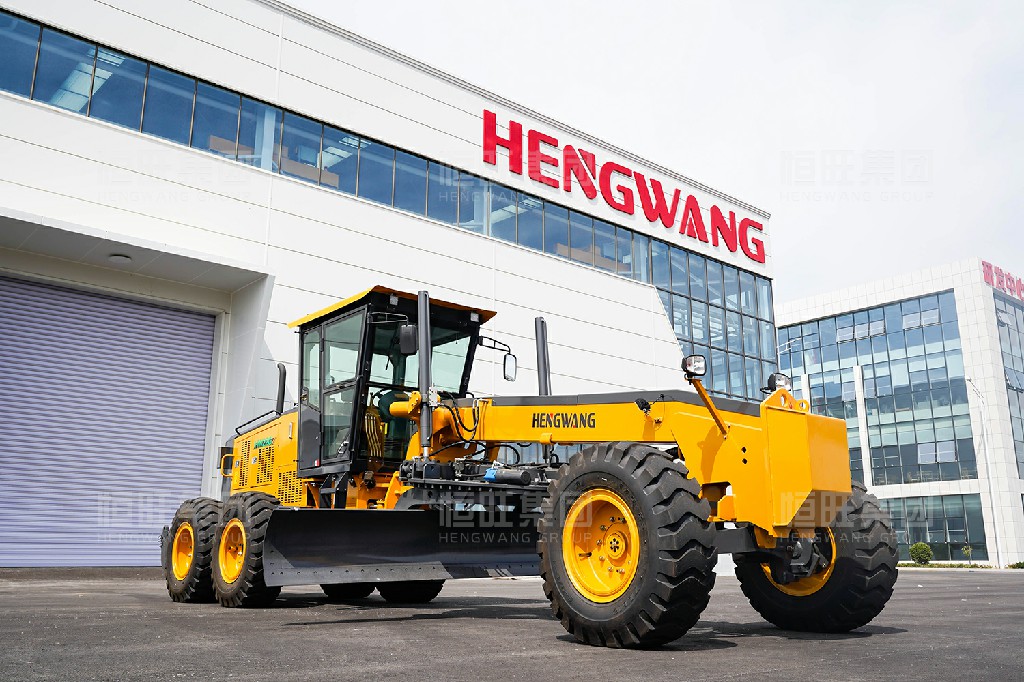

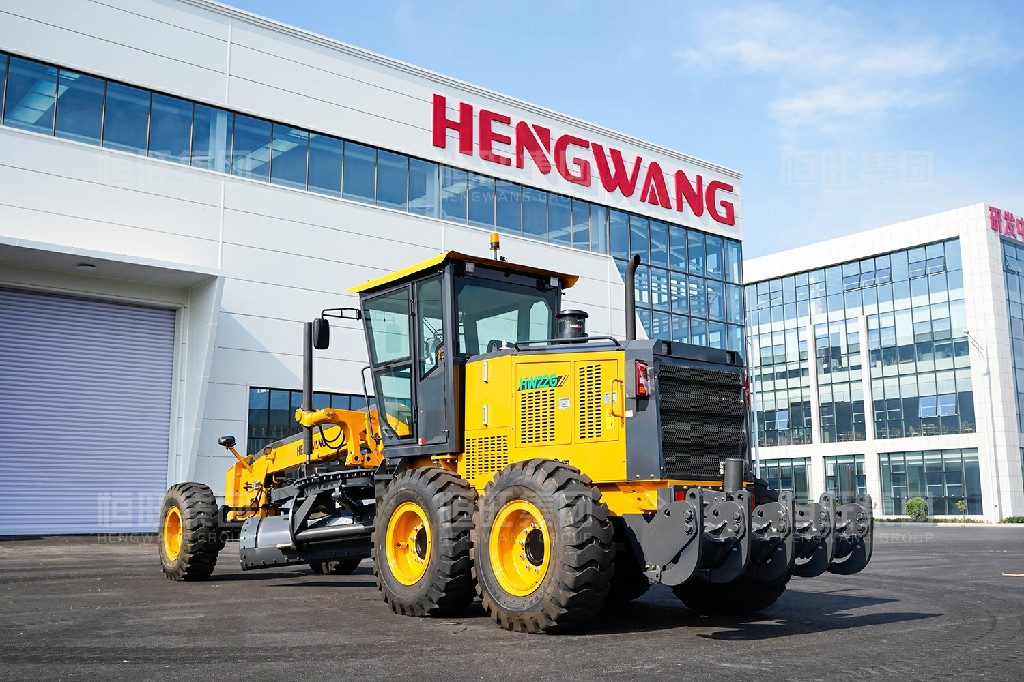

HW22G Motor Grader
Training on Arrival
One-year warranty
Factory Direct
Basic Specifications:
Operating Weight: 17000kg
Rated Power: 160Kw
Width of Shovel Blade: 3660/3965/4270mm
Hengwang Group aims to provide you with complete engineering equipment solutions to reduce your costs and increase your profits.
BackPerformance parameters
| Product name | HW22G |
| Operating weight of machine (kg) | 17000kg |
| Wheelbase (mm) | 6530 |
| Wheel tread (mm) | 1538 |
| Minimum ground clearance (mm) | 430 |
| Steering angle of front wheels (°) | ±45 |
| Articulated steering angle (°) | ±25 |
| Maximum traction force (kN) | 90 |
| Turning radius (mm) | 8600 (Outer side of front wheel) |
| Maximum gradeability (°) | 20 |
| Width of shovel blade (mm) | 3660/3965/4270 |
| Height of shovel blade (mm) | 635 |
| Blade slewing angle (º) | 360 |
| Blade cutting angle (º) | 44-91 |
| Maximum digging depth of blade (mm) | 500 |
| Length (mm) | 9315 |
| Width (mm) | 2620 |
| Heigh (mm) | 3400 |
| Engine | |
| Engine model | Cummins 6CTAA8.3-C215 |
| Rated power/rated speed (kw/rpm) | 160kW/2200rpm |
| Drive system | |
| Torque converter | Single single-phase three-element |
| Transmission | Countershaft Electro-hydraulic control |
| Gears | Six forward and three reverse |
Easy maintenance
● The structural components inherit the outstanding quality of Shantui's mature products.
● The electrical harnesses utilize seamless corrugated pipes and deconcentrators for branching, offering a high level of protection.
● The rear-mounted battery, which requires no maintenance, boasts a high power capacity.
● The essential electric and hydraulic components incorporate imported products, ensuring stable and reliable quality and exceptional reliability.
Contact us now to inquire about the best price.
All products are guaranteed for 12 months!
